Detailed Product Description
| Impact Energy: | 11J 22J | Impact Speed: | 3.5 M/s |
| Pendulum Angle:: | 150° | Accuracy: | ±0.1% |
| Resolution: | 1% | Distance Between Impact Blade And Clamp Mouth: | 22.0mm±0.2mm |
| Blade Fillet Radius: | R=0.8mm±0.2mm | Specimen Type: | Best Type Of Specimen Is 1 Type |
| Power: | 220V | Tester: | Pendulum Impact Tester |

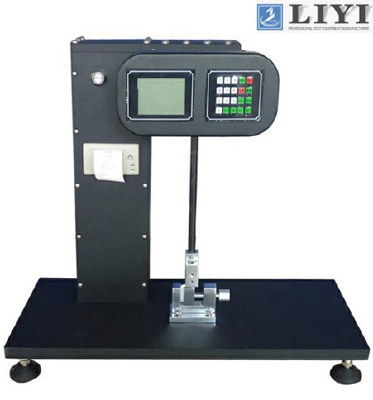

Electronic Digital Plastic Testing Equipment / Pendulum Impact Tester
Introduction:
The izod impact testing machine is mainly used to measure the impact toughness of rigid plastic, reinforced nylon, fiberglass, ceramics, cast stone, insulation materials and other non-metallic materials. It is the ideal testing equipment in the chemical industry, scientific research institutes, universities and quality testing departments.
Characteristics:
English characters LCD shows the results, the storage of test results, and has the energy loss to be
automatic correction function. Simple structure, convenient operation, data accurate and reliable.
Theory:
Strike the specimen supported as a vertical cantilever beam using the known energy pendulum, measuring the energy absorbed by the specimen during damage. The fixed distance is from impact
line to specimen fixture. For the notched specimens, the fixed distance is from impact line to the middle line of notch.
Designing standard:
GB/T1843, ISO179---92, ISO180, GB/T21189, GB/T2611, JB/T8761
Specifications:
Mode: | LY-XB22 |
Impact speed: | 3.5m/s |
Pendulum energy: | 11J , 22 J |
Pendulum angle: | 150degree |
Impact center distance: | 335mm |
Accuracy: | ±0.1% |
Resolution: | 1% |
Distance between impact blade and clamp mouth | 22.0mm±0.2mm |
Blade fillet radius | R=0.8mm±0.2mm |
Energy loss: | 11J,22J—0.5% |
Specimen type: | Best type of specimen is 1 type. |
Need the space: | Front and back 0.4m,left and right 1.5m,head 1.5m |
Power: | (220-15%～220 10%)VAC 50HZ 0.1KW |
